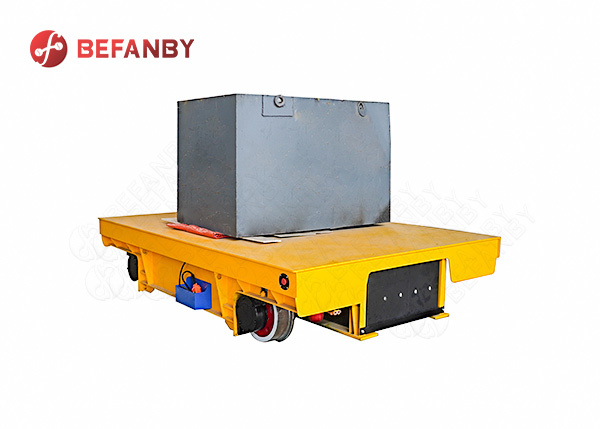

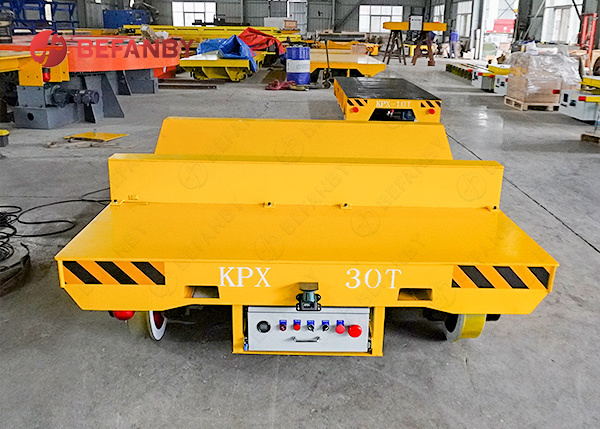

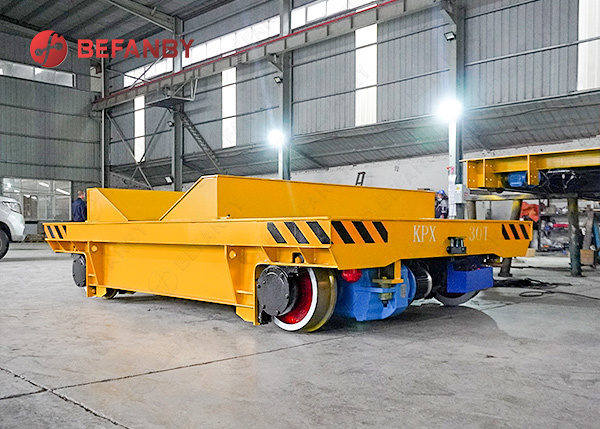

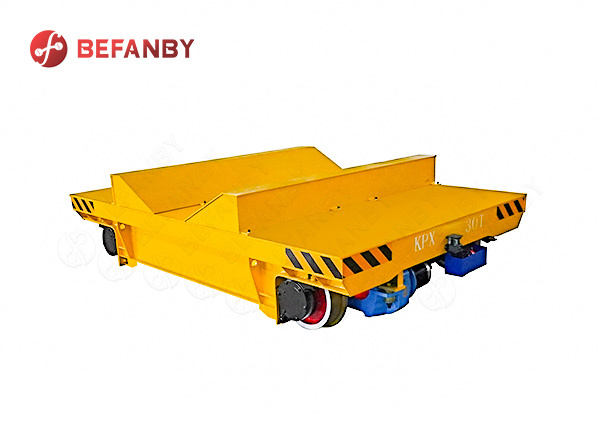

Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart

  • Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart
  • Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart
  • Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart
  • Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart
  • Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart
مكان المنشأ خنان ، الصين
اسم العلامة التجارية BEFANBY
إصدار الشهادات CE,SGS,ISO9001
رقم الموديل KPT
الحد الأدنى لكمية 1 مجموعة/مجموعات
الأسعار قابل للتفاوض
تفاصيل التغليف سيتم تعبئة منصة الرفع بواسطة البطانة، وسيتم شحن الأجزاء في حالة خشبية عالية الجودة.
وقت التسليم 20-30 يوما كتوصيل معتاد
شروط الدفع L/C ، T/T ، Western Union
القدرة على العرض 1500 مجموعة/مجموعة ، سنويا

اتصل بي للحصول على عينات مجانية وكوبونات.

ال WhatsApp:0086 18588475571

WeChat: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.

x
تفاصيل المنتج
لون مخصصة اسم المنتج منصة عمل جوية مرنة بطارية مقص
سعة التحميل مخصصة مزود الطاقة البطارية تعمل
ميناء تشينغداو/تيانجين/شنغهاي طلب الصناعة الثقيلة ، في الهواء الطلق ، البناء
مواد فُولاَذ
اترك رسالة
منتوج وصف

Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart

Product Description

Strong Load Capacity
Heavy loads are our core competence. Whether it's steel, large machinery, or automotive parts, we offer solutions for loads ranging from a few tons to hundreds of tons, tailored to your needs and ensuring safe transportation.

Flexible Power Options
Optional DC Motors: We offer the most suitable power solution for you. DC motors are renowned for their excellent start-stop stability and speed regulation, enabling precise start-up control and stepless speed regulation, making them particularly suitable for applications requiring precise positioning.

Reliable Power Supply System
We have selected a battery-powered system. Safe and stable: Compared to busbar power supply, this system has no exposed contacts, eliminating the risk of short circuits and power outages caused by dust and metal shavings, making it particularly suitable for harsh, dusty, and humid environments.
Easy Maintenance: The track structure is sturdy, and the power coils are buried within, significantly reducing routine maintenance.
Long-Distance Operation: Ideal for assembly line operations requiring long-distance, continuous transport.





Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart 0

Product Parameter

Model KPT-2T KPT-5T KPT-10T KPT-16T KPT-20T KPT-25T KPT-30T KPT-40T KPT-50T KPT-63T KPT-80T KPT-100T KPT-150
Rated load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth(H) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai Ilnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power(kw) 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running distance(m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Wight(t) 2.5 3.5 4 5.2 5.6 6.2 6.5 7.3 7.8 10.5 12.3 14.1 26.2
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100


QU100


Company Profile

Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. is a professional and international handling equipment company integrating R&D, design, production and sales. It has a modern management team, technical team and production technician team.

Founded in September 2003, the company is located in Xinxiang city, Henan province, covering an area of 33,300 square meters. It has a modern large-scale factory building, world-advanced production equipment and office equipment. The company has more than 150 employees, including 8 engineers and more than 20 technicians. The company has a first-class research and design team, which can undertake the design and production of various non-standard handling equipment.

BEFANBY can not only provide transfer cart quotations, but also provide you with satisfactory handling solutions.

Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart 1

Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart 2

Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart 3

Product Details

Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart 4

1. Fixed rail

Stable and controllable travel path, suitable for applications requiring repetitive single positioning (such as material distribution on production lines). Encoders or laser navigation can be added to enhance docking accuracy.
2. High Load Capacity
The load capacity can be customized (typically 1-100 tons) based on demand, making it suitable for handling heavy equipment (such as steel and molds).
3. Energy-Saving and Environmentally Friendly
Powered by batteries or low-voltage power (such as 36V/48V safe voltage), it produces no exhaust emissions and is suitable for indoor environments, aligning with green environmental development.
4. Automation Integration
Can be integrated with PLC, AGV systems, or MES systems for automated scheduling, reducing manual intervention. Optional remote control or intelligent obstacle avoidance features are available.
5. High Safety
Equipped with protective devices such as limit switches, anti-collision buffers, and an emergency stop mechanism.
6. Long Life and Low Maintenance
Simple structure and non-slip, wear-resistant cast steel wheels require only regular inspection of the rail and motor.

Product Feature

Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart 5

Shipping

Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart 6

Related Products


Heavy Load Optional DC Motor Coil Electrical Track Transfer Cart 7

FAQ

1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
