30 Ton Battery Transfer Cart With Cast Steel Wheels
| مكان المنشأ | خنان، الصين |
|---|---|
| اسم العلامة التجارية | BEFANBY |
| إصدار الشهادات | CE,SGS,ISO9001 |
| رقم الموديل | KPX |
| الحد الأدنى لكمية | 1 مجموعة/مجموعات |
| الأسعار | قابل للتفاوض |
| تفاصيل التغليف | سيتم تعبئة منصة الرفع بواسطة البطانة، وسيتم شحن الأجزاء في حالة خشبية عالية الجودة. |
| وقت التسليم | 20-30 يوما كتوصيل معتاد |
| شروط الدفع | ل / c، / تي تي، ويسترن يونيون |
| القدرة على العرض | 1500 مجموعة/مجموعة ، سنويا |
تفاصيل المنتج
| لون | حسب الطلب | اسم المنتج | منصة عمل جوية مرنة بطارية مقص |
|---|---|---|---|
| سعة التحميل | حسب الطلب | مزود الطاقة | تعمل بالبطارية |
| ميناء | تشينغداو/تيانجين/شنغهاي | طلب | الصناعة الثقيلة ، في الهواء الطلق ، البناء |
| مواد | فُولاَذ |
منتوج وصف

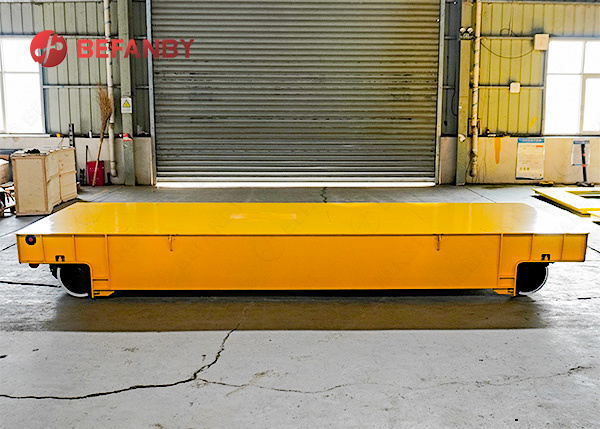

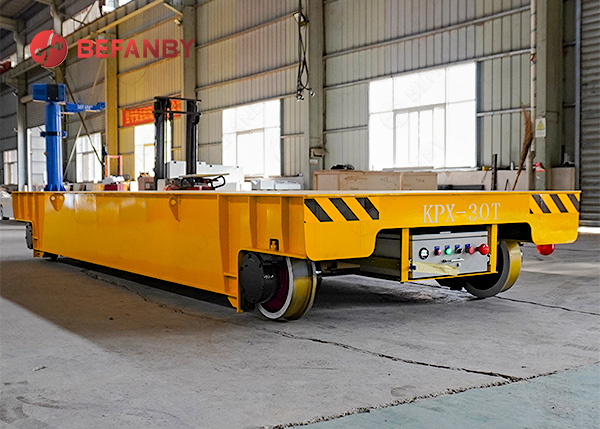

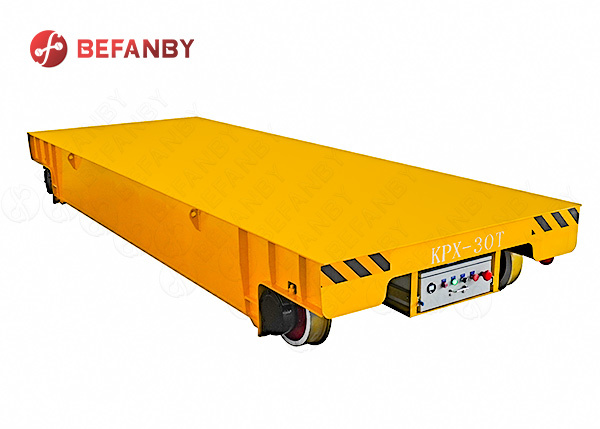

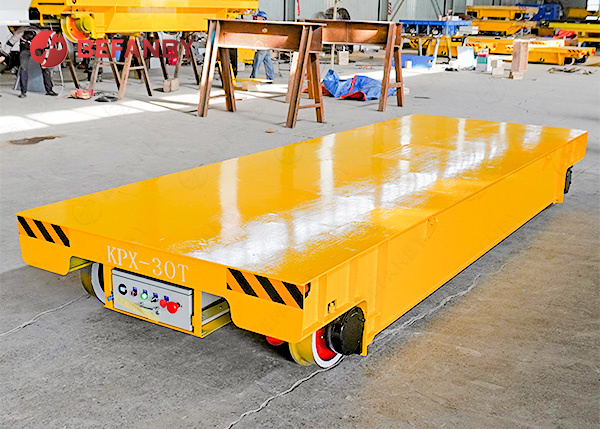

30 Ton Battery Transfer Cart With Cast Steel Wheels
Product Description
Battery-powered rail transport vehicles are electric transport equipment that runs on fixed tracks, powered by batteries. They are widely used in heavy-duty material transport in industries such as machinery manufacturing, steel metallurgy, and mold processing. The entire vehicle is electrically driven, requiring no external cables, offering flexible operation and meeting the transportation needs of long distances and multiple workstations within a workshop.
Product Parameter
| Model | KPT-2T | KPT-5T | KPT-10T | KPT-16T | KPT-20T | KPT-25T | KPT-30T | KPT-40T | KPT-50T | KPT-63T | KPT-80T | KPT-100T | KPT-150 | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Heigth(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rai Ilnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(mm) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Wight(t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | 10.5 | 12.3 | 14.1 | 26.2 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 |
QU100 |
|
Company Profile
Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. is a professional and international handling equipment company integrating R&D, design, production and sales. It has a modern management team, technical team and production technician team.
Founded in September 2003, the company is located in Xinxiang city, Henan province, covering an area of 33,300 square meters. It has a modern large-scale factory building, world-advanced production equipment and office equipment. The company has more than 150 employees, including 8 engineers and more than 20 technicians. The company has a first-class research and design team, which can undertake the design and production of various non-standard handling equipment.
BEFANBY can not only provide transfer cart quotations, but also provide you with satisfactory handling solutions.
Product Details

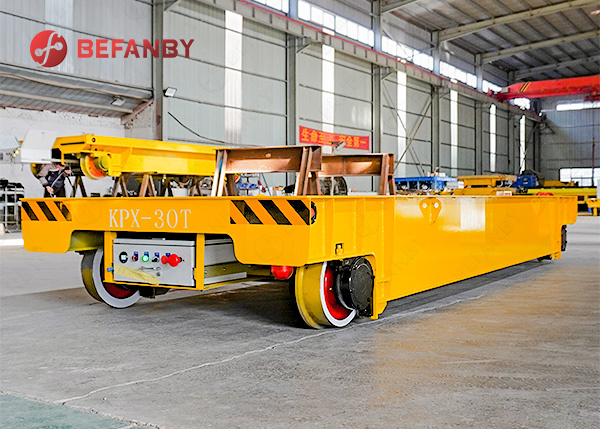

This rail-mounted transfer cart uses high-strength cast steel wheels, offering excellent wear resistance and load-bearing capacity. The wheels undergo professional heat treatment, enabling them to withstand frequent start-stop operations and maintain stable operation during heavy-duty transport. Compared to ordinary wheels, cast steel wheels have stronger impact resistance, effectively reducing wear and tear over long-term use and extending equipment lifespan.
Product Feature
The transfer cart uses a battery-powered system, making operation safer and more convenient. Battery capacity can be customized according to usage frequency and transport distance, supporting long-term continuous operation. The equipment can also be equipped with an intelligent charging system, making charging convenient, maintenance simple, and effectively improving factory transportation efficiency.
Shipping
Related Products
FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
Product Tap: Material Handling Cart , Rail Transfer Cart
