China Supplied Electrical Rail Transfer Cart With Machinery Factory
| مكان المنشأ | خنان، الصين |
|---|---|
| اسم العلامة التجارية | BEFANBY |
| إصدار الشهادات | CE,SGS,ISO9001 |
| رقم الموديل | KPX |
| الحد الأدنى لكمية | 1 مجموعة/مجموعات |
| الأسعار | قابل للتفاوض |
| تفاصيل التغليف | سيتم تعبئة العربة الآلية بواسطة قماش القنب ، وسيتم شحن الأجزاء في العلبة الخشبية عالية الجودة. |
| وقت التسليم | 40-50 يومًا كالمعتاد للتسليم ، 30-40 يومًا للتسليم العاجل |
| شروط الدفع | ل / c، / تي تي، ويسترن يونيون |
| القدرة على العرض | 800 مجموعة / مجموعات ، في السنة |
تفاصيل المنتج
| مادة | س235 | لون | حسب الطلب |
|---|---|---|---|
| طلب | المجال الصناعي ، معالجة الأنابيب الصلب | سرعة الجري | 0-20 م/دقيقة |
| مسافة تشغيل | غير محدود | ضمان | 24 شهرا |
| ميناء | تشينغداو/تيانجين/شنغهاي | سعة التحميل | حمولة 1-1000 طن |
| نوع العملية | قلادة يد + ريموت كنترول | مزود الطاقة | تعمل بالبطارية |
| ميزة | أكثر من 17 عامًا من الخبرة في نقل أقسام السفن بين مباني حوض بناء السفن | قوة اختيارية | مزود طاقة الكابل ، خط ترولي ، سكة جهد منخفض ، ديزل ، إلخ. |
| إبراز | China electrical rail transfer cart,battery transfer cart machinery,industrial rail transfer cart |
||
منتوج وصف

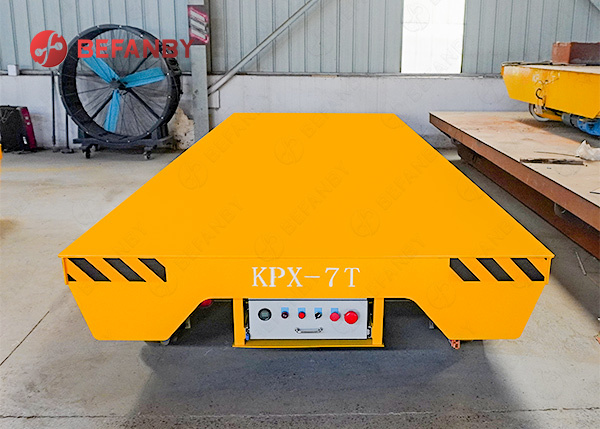

China Supplied Electrical Rail Transfer Cart With Machinery Factory
The battery-powered rail transfer cart featured here utilizes a DC motor drive system, offering smooth operation and agile starting capabilities to meet material transport requirements across a variety of settings—including workshops, warehouses, and steel mills. Powered by onboard batteries, the cart requires no external cables, making it ideally suited for long-distance and multi-station transport operations. The cart boasts a robust construction, featuring a sturdy box-beam frame structure. Its platform dimensions, load capacity, and functional configurations can all be customized to align with the client's specific operational conditions, thereby ensuring optimal adaptability for handling diverse types of materials.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

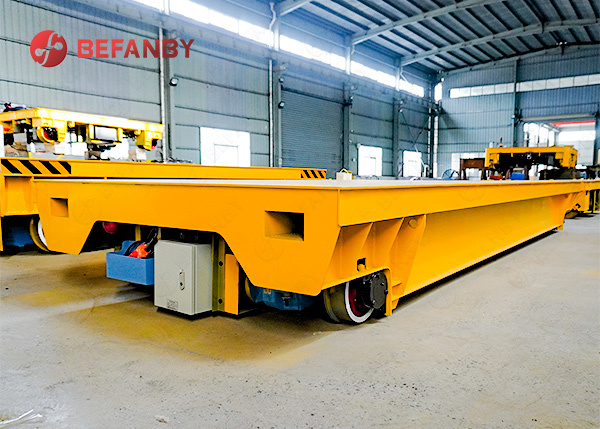

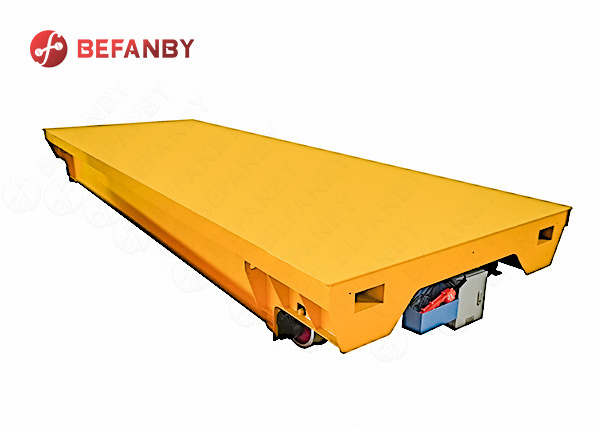

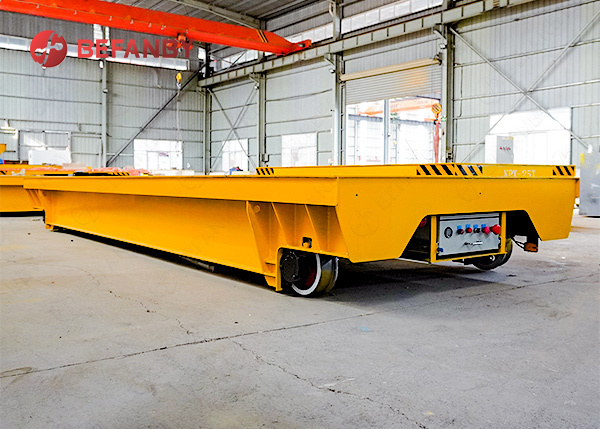

Detailed Images
This rail transfer cart offers a host of advantages, including simple operation, convenient maintenance, and low noise levels during operation. It supports a choice of control modes—remote control, handheld pendant, or automated control—enabling precise starting and stopping as well as flexible movement. Powered by a robust DC motor, the unit maintains stable operation even under heavy loads; when paired with wear-resistant cast steel wheels—or other custom wheel options—it effectively extends the equipment's service life. Furthermore, the cart can be customized with various additional features—such as safety guardrails, hydraulic lifting mechanisms, and automatic docking systems—to provide a highly efficient and secure transport solution for modern, intelligent manufacturing facilities.
Technique Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Our Company
FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
