20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts
| مكان المنشأ | خنان ، الصين |
|---|---|
| اسم العلامة التجارية | BEFANBY |
| إصدار الشهادات | CE,SGS,ISO9001 |
| رقم الموديل | KPT |
| الحد الأدنى لكمية | 1 مجموعة/مجموعات |
| الأسعار | قابل للتفاوض |
| تفاصيل التغليف | سيتم تعبئة منصة الرفع المنقولة بواسطة قماش القنب، وسيتم شحن الأجزاء في علبة خشبية عالية الجودة. |
| وقت التسليم | 20-30 يوما كتوصيل معتاد |
| شروط الدفع | L/C ، T/T ، Western Union |
| القدرة على العرض | 1500 مجموعة/مجموعة ، سنويا |
اتصل بي للحصول على عينات مجانية وكوبونات.
ال WhatsApp:0086 18588475571
WeChat: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.
xتفاصيل المنتج
| لون | مخصصة | ضمان | 24 شهرا |
|---|---|---|---|
| سعة التحميل | مخصصة | مزود الطاقة | البطارية تعمل |
| ميناء | تشينغداو/تيانجين/شنغهاي | طلب | العمل الجوي ، المصنع ، ورشة العمل ، موقع البناء |
| مواد | فُولاَذ |
منتوج وصف

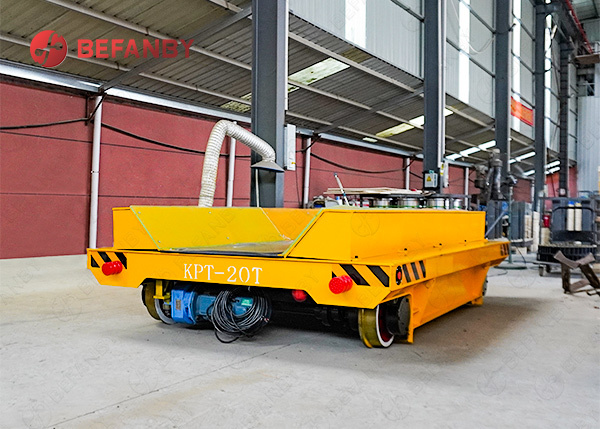

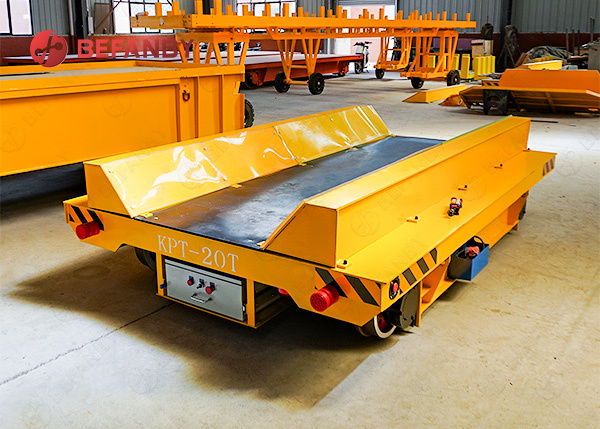

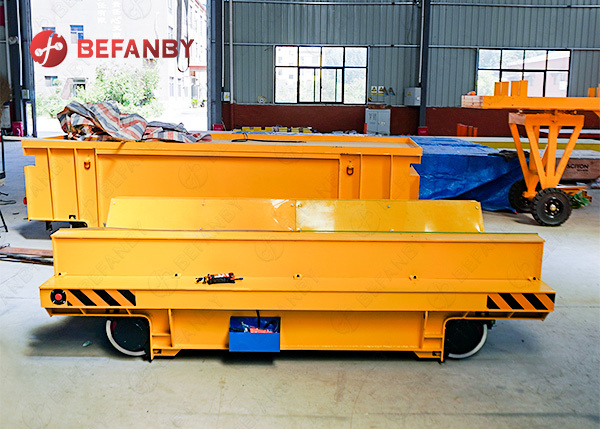

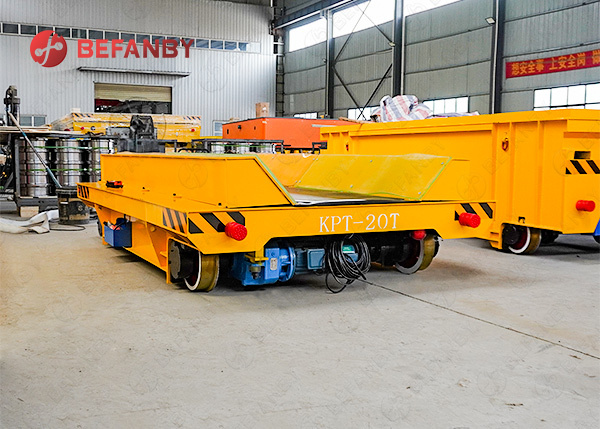

20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts
Product Description
This vehicle utilizes a cable drum power supply, ensuring smooth operation and high load capacity. It is particularly suitable for high-temperature, explosion-proof environments, in-furnace production, and for the precise handling and docking of large-sized steel materials.
I. Power Supply and Operation System
The KPT series rail transport vehicle is powered by a mobile drag chain, ensuring continuous and stable power during round-trip operation. The mobile drag chain moves with the vehicle and is made of wear-resistant material, extending its service life.
II. Safety and Control System
Equipped with safety modules such as electrical protection devices, an audible and visual alarm system, anti-collision buffers, and an emergency stop switch. Control options include joystick control or wireless remote control for safe remote operation.
Product Parameter
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency | ||
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance | ||
| Busbar Powered Handling Cart | KPC | Busbar | Working shop | ||
| Towed Rail Trailer | KP | Tractor | 1-100t | Working shop | |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment | |
| Trackless Handling Machine | BWP | Battery | Working path |
III. Structural and Functional Features
The vehicle platform utilizes a grooved or V-shaped support structure, customized to the diameter and length of the steel pipe. This effectively prevents rolling and displacement of the pipe, ensuring the safety of the operator and the operator during transport.
High-Strength Frame Design
The main beam utilizes a box-girder structure, with an overall load capacity of over 20 tons. The frame is heat-treated and spray-coated for rust prevention, ensuring strong torsion resistance and structural stability.
Products Details
Basic Structural Components
1.Frame: Constructed of welded high-strength steel (a steel section splicing structure), it offers excellent load-bearing capacity and deformation resistance.
2.Electrical System: Utilizes an AC motor, intelligent electronic control box, and emergency stop button to drive and control the entire vehicle.
3.Drive System: The electric motor drives the wheels through a speed reducer, ensuring smooth and reliable operation.
4.Wheelset: Typically high-strength cast steel wheels adaptable to tracks of varying gauges.
5.Power System: Depending on the power supply method, it can be divided into battery-powered, busbar-powered, cable drum-powered, and low-voltage rail-powered.
Application
Company Profile
Product Features
Main Types
Sturdy structure and strong load-bearing capacity, specially designed for round materials such as steel pipes.
Continuous power supply, no charging required, suitable for long-term production line operation.
Smooth operation, precise positioning, and support for automated control interfaces.
Optional high-temperature protection configuration meets harsh working conditions.
Various customization options available: table size, gauge, safety devices, and load capacity can all be customized to meet your needs.
Shipping
Related Products
FAQ
Q: Whether you product can be customized?
A: Sure. All our products are customized as per customers’ requirement, because different products are with different requirements of specification. The proper solution will be provided according to your true demand.
Q: What is the size and load of this Rail Transfer Car?
A:The size and load of our this rail transfer car is customized design according to your requirement.
Q: How do transfer cart been shipped?
A: We export the transfer cart by sea or train with full container, LCL or in Bulk.
Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 30 days.About the delivery term, we accept ,FOB, CIF. About the payment, we accept T/T or L/C, etc.
Q: Can we choose the power supply for industry transport cart?
A: Yes,such as the cable drum, battery powered ,low voltage powered, busbar powered ,trailing cable powered, etc.
